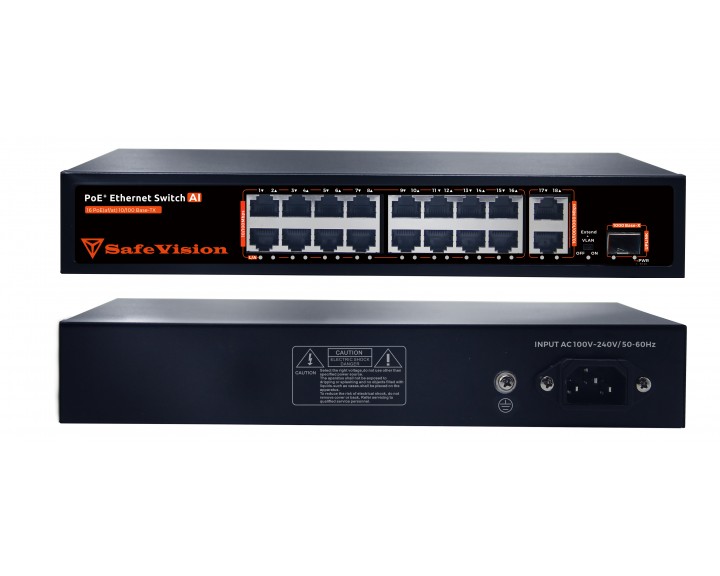

16 + 3 Ports PoE+ Switch With AI-Watchdog,
16 x 10/100Mbps PoE+,
2 x 10/100/1000Mbps + 1 x SFP, 200W.

KEY FEATURES

• 16-Portar 10/100Mbps IEEE 802.3af/at PoE Switch (End-Span PSE) with AI Watchdog function.
• Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards.
• Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX.
• 16-Port support 48V-56VDC power to PoE-powered devices.
• Provide 15.4W or 30W power to powered devices.
• 200-watts PoE budget.
• Built-in 53V /1.25A switching power supply.
• Extra 1x10/100/1000Mbps UPLINK RJ-45 + 1x1000Mbps fiber SFP UPLINK-port.
• PoE data & power transmission distance up to 100m, 250m in 10Mbps.
• Port-based VLAN for Enhancing Security.
• Backplane Bandwidth: 5.6Gbps.
• Excellent anti-thunder, anti-static and anti-interference ability.
• Surge Protection: 4KV.
• Easy and convenient to use, plug & play, no need to configure.
• Galvanized housing for stable and durable working life.

AI Watchdog Function Introduction
PoE webcam is 24 hours of continuous work, when the PoE camera crashes abnormally, or does not communicate, it needs to be manually
checked on the spot and manually restarted. But with our intelligent watchdog function, there is no need for personnel to go to the scene to
view when the PoE switch can not receive the network data packets of the camera, it will start timing when the cumulative time exceeds three
minutes, the camera will be automatically powered off and restarted, to achieve the purpose of remote intelligent monitoring.

The SV-S0016EP-2G-SG provides 16-port 10/100Mbps IEEE 802.3af/at Power over Ethernet with a total of 200 watts of PoE budget, which is an ideal
solution to fulfill the demand of sufficient PoE power for network applications. It is able to drive 16 IEEE 802.3af/at compliant powered devices.

The SV-S0016EP-2G-SG is an ideal solution for securing IP surveillance infrastructure. It provides both 802.3af/at PoE functions along with 16x10/100
Base-TX ports featuring 15.4-watt 802.3af/30-watt 802.3at PoE in RJ-45 interfaces and extra 2x10/100/1000Mbps UPLINK RJ-45 ports to keep a cascade
connection with another switch or NVR. For instance, one 16-Port PoE Switch can be combined with one 16-Channel NVR and four PoE IP cameras
as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.

The SV-S0016EP-2G-SG RJ-45 interfaces support 10/100Mbps Auto-Negotiation at downlink port from 1 to 16 and uplink port from 17 to 18 for optimal
speed detection through RI-45 Category 6, 5e or 5 cables. It also supports standard Auto-MDI/MDI-X that can detect the type of connection to
any Ethernet device without requiring special straight or crossover cables.

The SV-S0016EP-2G-SG supports port-based VLAN function, effectively preventing the whole system from internet broadcast storm and making the
data transfer much safer. When the VLAN mode is enabled, the data cannot be forwarded among DOWNLINK RJ-45 ports, but DOWNLINK ports
and UPLINK RJ-45 ports can communicate with each other. The bandwidth of DOWNLINK RJ-45 port is forced to 10Mbps mode to adapt to long
distance transmission of max 250 meters. The bandwidth of UPLINK RJ-45 port is still 100Mbps.

With data and power over Ethernet formed in one unit, the SV-S0016EP-2G-SG reduces cabling requirements and eliminates the need for dedicated
electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify
the installation effort and eliminate the need for electricians or extension cords. Providing 16 PoE interfaces, the SV-S0016EP-2G-SG is ideal for small
businesses and work-groups which requiring deploying the PoE for the wireless access points, IP-based surveillance IP phones in any place easily,
efficiently and cost-effectively.

Front & Rear Panel

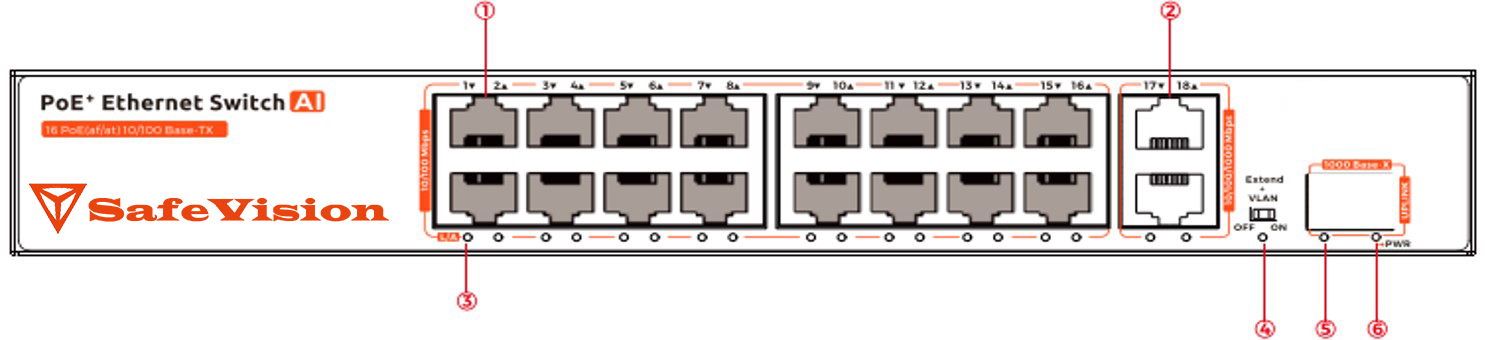

Front Panel
①Downlink Port: Transfer data from other IP devices to the switch.
②Uplink Port: Transfer data from PoE ports to other devices (NVR/Switch/ADSL).
③Uplink SFP Port: Transfer data from PoE ports to other remote devices(Switch).

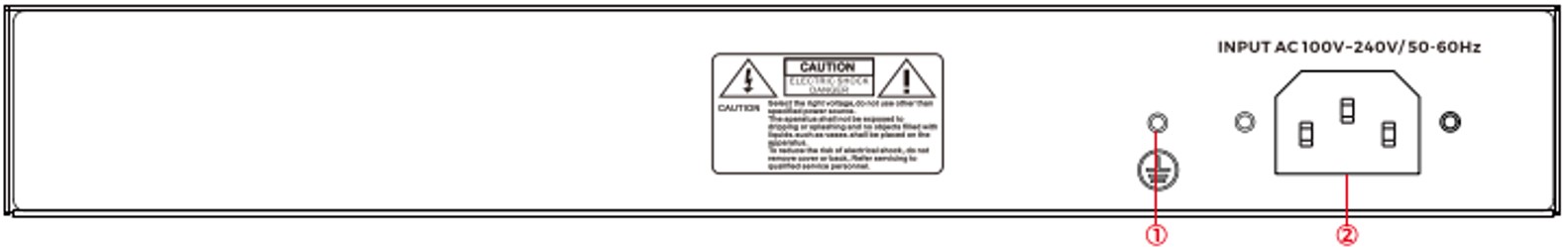

Rear Panel
①Ground connection.
②Input: AC 100~240V.
