DESCRIPTION

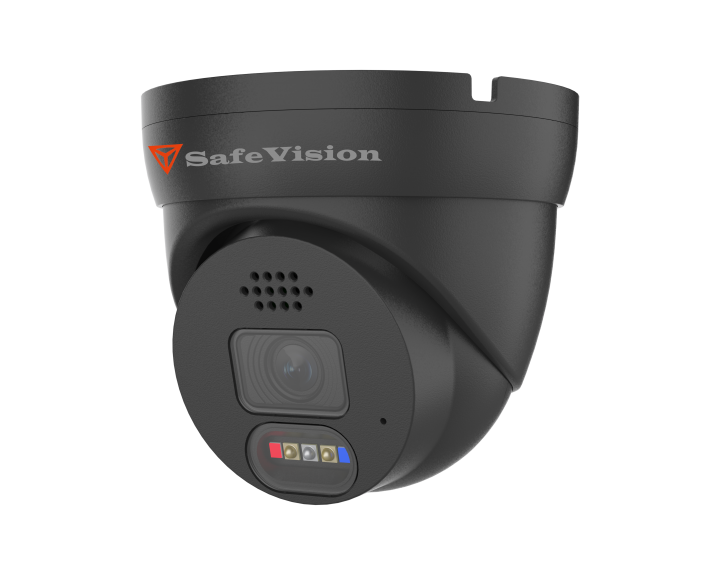

Equipped with a 2.8 fix lens, this 4MP Turret camera is designed for short-distance surveillance (up to 25m) in indoor and outdoor scenarios. With its hybrid capability, the white LED will enlighten the scene when humans being detected for full color image even
in dark scenarios. The camera offers outstanding Analytics, which can perform human and vehicle recognition. With various
detection rules and triggers. This model complies with NDAA demands. With its outstanding performance, reliability, and affordable
price, the camera is the perfect solution for any simple IP installation.

FUNCTIONALITIES

Active Deterrence

Active deterrence allows the camera to detect and react to objects to deter potential intruders. When the camera detects an object, it can glow solid or flash, emit warning sounds or voice messages (number and selection of deterrent functions may vary depending on the camera model). This function is designed to protect the place that is being monitored, discourage the intruder from further actions and scare him away without the need for security intervention.

Starlight DUO

Colorful and clear images even in complete darkness.
Starlight Pro Duo cameras are equipped with two types of illuminators: WHITE LEDs and IR LEDs.
Extremely high sensitivity of the camera in combination with high power light of WHITE LEDs enables observation in color regardless of the time of day (24/7) and weather conditions.
Depending on camera configuration, WHITE LEDs can also act as a warning light after an alarm event or be turned on manually by the user.
IR LEDs enable "traditional" night-time operation in black/white mode, which may be useful in situations where discretion of observation is desired.

Object Classification

A new generation of intelligent image analysis based on Deep Learning. The algorithm used allows the camera to recognize the shape of a human, a car and bike/motorcycle, even as small as 1% of the stage. The efficiency of the analysis methods used allows simultaneous classify and monitoring of up to 32 objects of different types.

Intrusion

The function allows to trigger a local alarm, send an e-mail, activate the relay, or send a push notification to the mobile application after the object (human, car or bike/motorbike has crossed the previously defined detection zone.
Application example:
- perimeter protection of the object
- protection of strategically important objects

Tripwire

The function allows to trigger a local alarm, send an e-mail, activate the relay, or send a push notification to the mobile application after the object (human, car or bike/motorbike has crossed the previously defined line (maximum 4 lines per one camera).
Application example:
- perimeter protection of the object



Hardware Smart IR

The Smart IR functionality allows you to dynamically adjust the level of infrared illuminator built into the camera to the distance from the observed object. Thanks to this, the image is not overexposed, and the objects are clear even in close proximity to the camera.

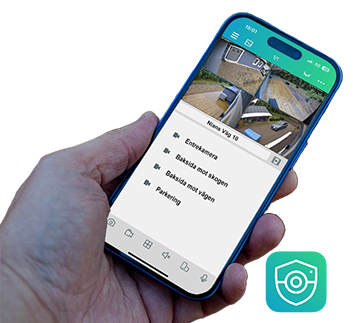

RxCamView

The mobile application allows for remote monitoring of AHD and Wi-Fi recorders via a smartphone with Android or iOS. The basic configuration of the recorder and cameras as well as PTZ control are available from the phone. The application allows you to connect to the recorder via P2P using a QR code, without the need for additional network configuration. In addition, it allows you to receive push alarms for selected alarm actions such as:
- crossing the line
- intrusion into the zone
- sabotage

(link is external)

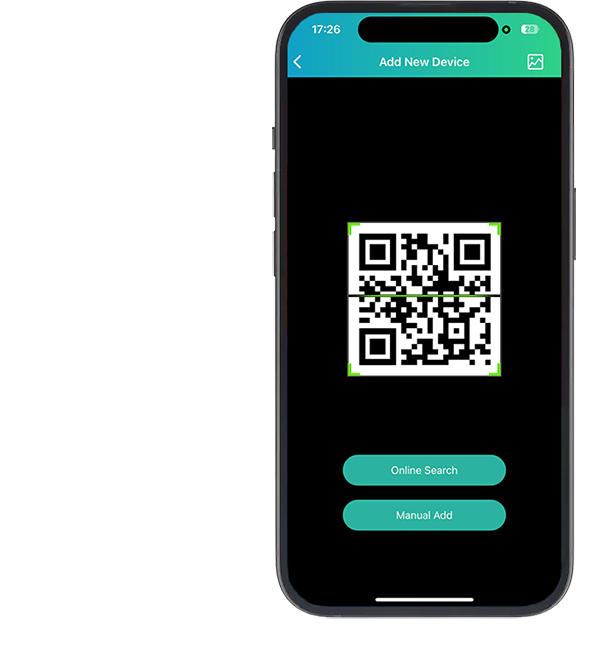

P2P

All cameras have an autonomous P2P functionality that works with the RxCamView application. The camera which we provide Internet access can connect directly to the application using the QR code (via the P2P server). The solution is useful for large / dispersed objects where we only need live view.

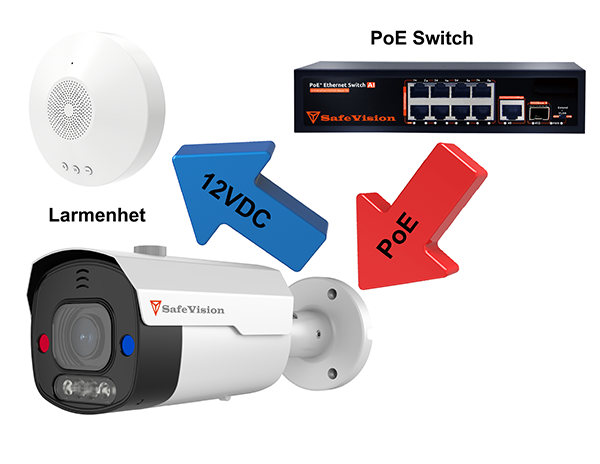

Two Way Power

Two way power function allows for using DC connector in camera (12V) as an output, when camera is powered by PoE. Maximum power output is 3W, so this solution is recommended mostly for active powered microphones (for cameras with audio input).

Configuration Of Cameras

From The NVR

The recorders in combination with the cameras of the same series, apart from the configuration of basic parameters such as contrast or brightness, allow for a much more advanced interference with the camera settings. Depending on the functionality of the camera, from the recorder level it is possible, among others:
- changing the network settings of the camera
- stream parameters setting
- setting the zoom and focus in a camera with a motor zoom lens
- enabling and configuring the image analysis function

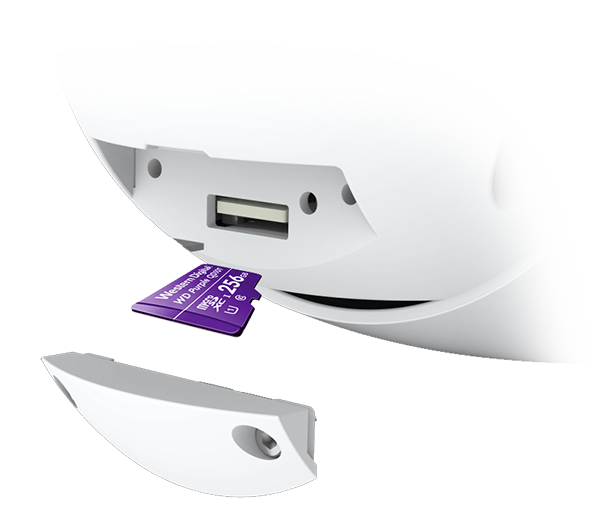

SD Card Slot

The camera equipped with an SD card slot allows local recording of video material, so it is resistant to possible interference in the transmission of data between the camera and the recorder. Playback and export of saved material can be done from the level of the web browser.

(link is external)

PoE

Power over Ethernet - the technology allows you to power the IP camera directly from the recorder, without the need for additional power devices.
